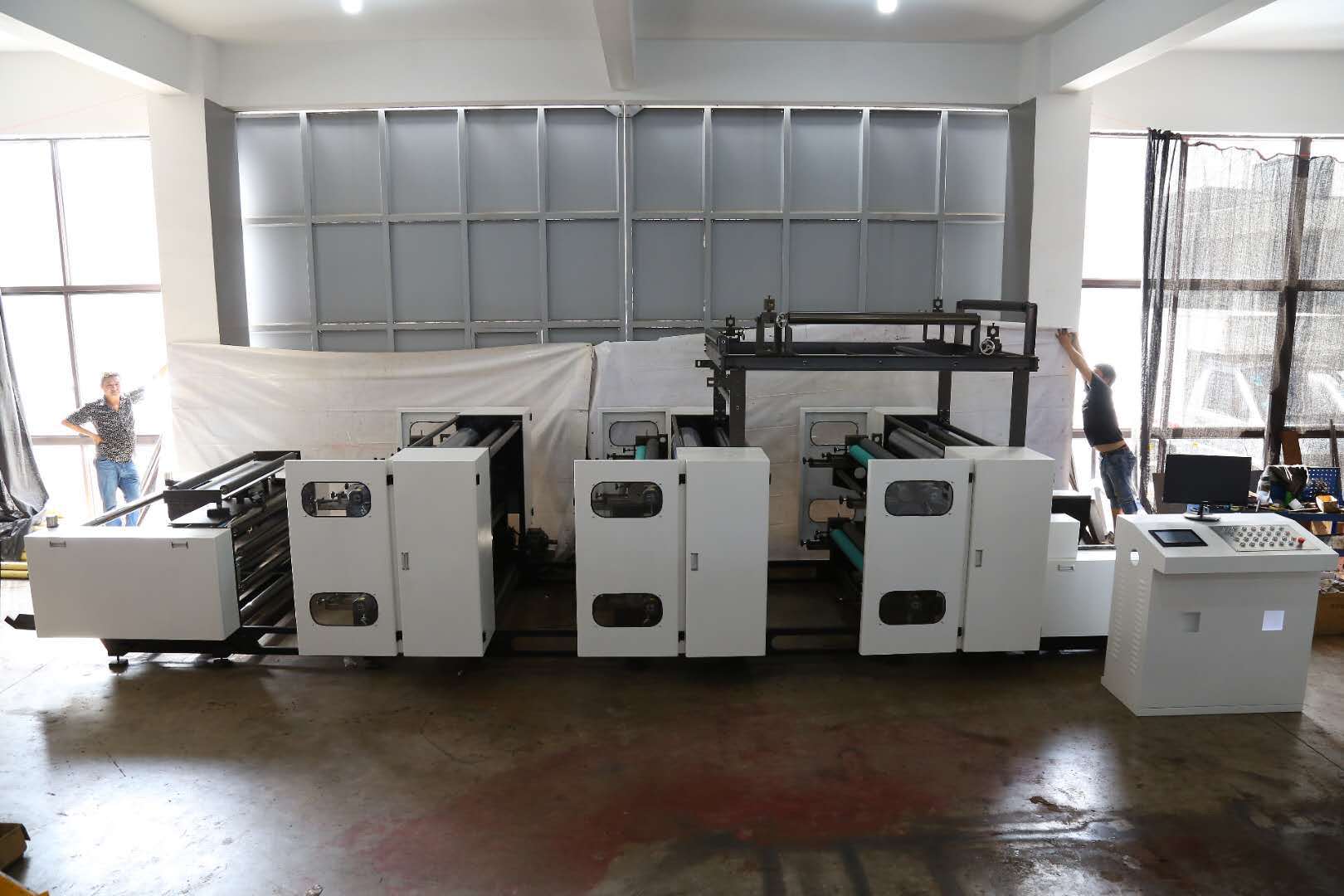

JCYT-6色1200型柔版印刷机

               Satellite combination flexo printing press

设计来源：根据意大利客户提供的视频图片及要求，吸收柔版印刷机的元素，共同开发的一款组合式柔版印刷机。

Design source: based on the video images and requirements provided by Italian customers, it absorbs the elements of flexographic printing presses, and jointly develops a satellite composite flexographic printing press

特点Features：

1.从放料到收料超短距离。

From the discharge to receiving a very short distance

2.自主研发的特制刮刀，弥补高速飞墨，减少了溶剂在空气中的挥发。

      Self-developed special scraper to make up for high-speed flying ink, reducing the solvent in the air of volatile.

3.反复印刷长度260-635MM，填补层叠式柔版印刷机印刷长度不够的空白。

   Repeated printing length 203-635MM, to fill the laminated flexo printing machine printing length is not enough blank.

4.采用卫星式轮转机套色方式，套色精准，印刷稳定。

Using satellite rotary machine sets color, color chromatography precision, printing stability.

5.承印材料：PVC：35~70μm OPP：20~70μm BOPP：20~60μm PE：35~100μm NY：20~50μm PET：20~60μm CPP：20~60μm纸张：20~250g/㎡不干胶等材料。

Printing material: PVC: 35 to 70 μm OPP: 20 to 70 μm BOPP: 20 to 60 μm PE: 35 to 100 μm NY: 20 to 50 μm PET: 20 to 60 μm CPP: 20 to 60 μm Paper: 20 to 250 g / Other materials.

1. 5. 制版周期短、成本低制一副多色凹版滚筒的周期为5?9?110天，而柔印版制作为5小时。柔性版视印刷面积而定版材大小，比凹印滚筒成本低得多。

The period of plate making is short, the cost is low, the period of multi-color gravure cylinder is 5-10 days, but the flexography is 5 hours. The flexography depends on the printing area and the size of the plate, which is much lower than the cost of gravure drum.

1. 6. 印前预热，印后风刀干燥设计。解决卫星式印刷机各印刷单元之间距离太短，油墨干燥不良时容易造成的蹭脏。

Pre-pre-press, printed after the wind knife drying design. Solve the satellite printing press between the printing unit is too short, easy to cause dirty ink dirty.

8.1-6色可根据需要定制，宽度300-1600根据需要定制。

1-6 color can be customized according to need, width 300-1600 customized according to need

9.工艺1放料、2自动恒张力、3刮刀、4印刷单元、5牵引、6自动恒张力、7收料

Sections:1 discharge, 2 automatic constant tension, 3  scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 receipts

主要技术参数Main Technical Variables：
